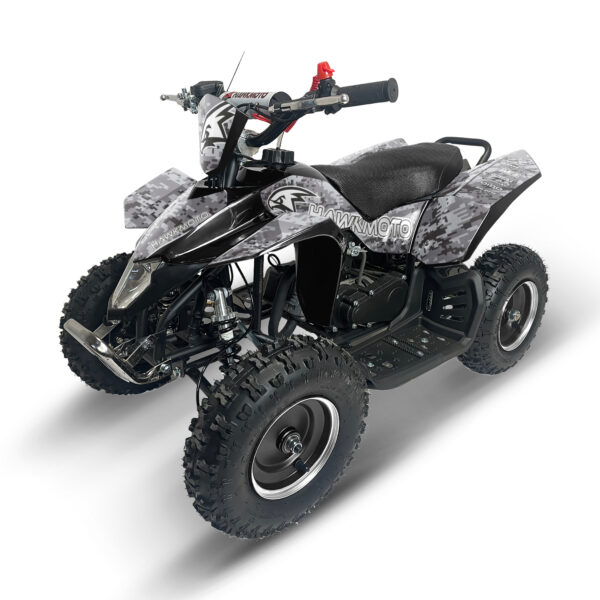

Hawkmoto SX-49R Avenger V2 50cc Mini Kids Quad Bike Assembled – Star Rock
Hawkmoto is a brand you can trust with over 15 years in the kids MX and ATV Industry These entry level 50cc kids Quad Bikes are the hottest bikes on the market today! Now they come with a set of custom designed exclusive graphics – with over 20 designs to choose from! ***Graphics and Decals come with the bike and you will need to fit these to the quad bike*** What better way to introduce your child to the thrills of riding a real quad bike in the security of a safely controlled environment than a 50cc quad bike.
- Independent Front and Rear disk brakes
- Enhanced Frame for durability
- Upgraded New Style plastics
- Effortless rev ‘n’ go operation
- Chain drive Transmission
- Pull start with Easy Start mechanism
- Compact and portable for easy transportation
- Superior 190mm front and rear adjustable shocks
- Front and Rear 140mm Disk Brakes
- Net weight of 29kg
- Recommended Max Load of 75kg (12 Stone)
- Dimensions: 1000mm length, 590mm width, 630mm height
- Suitable for ages 5 and above (at parents’ discretion)
- Designed exclusively for off-road usage
- Thumb throttle
Measurements When Built: Seat To Floor – 48cm Seat to footwell: 34cm Floor to Handlebars: 65cm Length of Quad Bike is 108cm Width of Quad Bike is 62cm All that’s needed is unleaded petrol and 2 stroke oil. PLEASE NOTE DUE TO THE TECHNICAL NATURE OF THESE QUADS, THEY WILL ONLY BE DELIVERED BUILT AND ON A PALLET This doesn’t however negate your need to do safety checks and nut and bolt checks especially after the first hour of use. Please bare this in mind when comparing prices of other quads of a similar nature from other suppliers that come in a box and require professional assembly. Experience tells us that customers would rather not have to build them as this can be very time consuming so upon order we will assemble your quad bike and start it up to check all is good before we palletise it and deliver to you ready to ride. Terms and conditions of supply for Mini Motos, Pit Bikes and Quad Bikes The products that we supply are technical & mechanical products, which require mechanical knowledge and the ability to use and maintain. These products require a basic level of mechanical understanding to operate and a knowledge of mixing 2 stroke fuel @ 50:1 ) that doesnt mean 50% of each please use the enclosed fuel mixing bottle to accurately mix your fuel. 2 stroke fuel used does matter! Only use motorcycle grade semi synthetic 2 stroke. Lawnmower/gardening/chainsaw 2 stroke will clog your spark plug and cause running issues. The following parts are not covered by the warranty on this item:
- Chains
- Fairings/ bodywork (unless damaged during delivery. Photos required within 24 hours of receipt)
- Pull Starts
- Clutches or springs
- Exhaust Pipes
- Tyres, Wheels
Terms of Warranty Due to its size and weight this item is covered by a replacement parts warranty, if your machine develops a fault within the warranty period of 30 days, you need to contact us and we will advise how to best rectify the problem and dispatch replacement parts, without charge providing the faulty parts are covered by the warranty. Please note customers will be expected to fit the parts themselves, guidance will be available on technical issues. Key things to ensure your Hawkmoto Avenger 49cc Kids Quad Bike Runs problem free:
- Don’t yank at your pull start like a lawn mover ( small short pulls is all it needs ) if you yank at your pull start you will break the mechanism and these are around £5.00 and readily available online
- If you mix your fuel wrong the bike isn’t going to start. Fuel should be motorcycle 2 stroke mixed at 50:1 ratio and not gardening 2 stroke
- Don’t over weight them ( These little engines wont take dads weight ) if over stressed they will throw the clutch spring please refrain dad from jumping on shouting it will be alright 🙂
The Hawkmoto SX-49 Avenger 50cc Mini Quad Bike is an awesome little starter quad bike but in essence they are what they are and all quad bikes require regular maintenance Mini Quad Build, Maintenance, Fuel Mix and Troubleshooting View all Kids Quad Bikes
Additional information
| Weight |
42 kg |
| Clutch |
Automatic
|
| Gears |
Automatic
|
| Engine |
50cc
|
| Engine Oil |
2 – stroke semi synthetic
|
| Rim Size |
6in
|
| Suspension |
Twin Front – Single Rear
|
| Brand |
Hawkmoto
|
| Warranty |
6 Months Manufacturer Defects (Parts only) – See Returns Policy
|
| Graphics |
Star Rock
|
YOUR QUAD BIKE WILL COME ASSEMBLED – PLEASE ALLOW 2 WORKING DAYS IN ADDITION TO NORMAL DELIVERY TIMESCALES FOR ASSEMBLEY AND CHECKS.
2 Stroke mini quads and mini bikes mix fuel at 25:1 Ratio using a quality semi synthetic 2 stoke motorcycle oil. DO NOT USE GARDENING OR MOWER 2 STROKE OIL it fouls the plug and causes the bike to misfire, bog out and not start.
4 Stroke 110cc and 125cc use straight unleaded fuel and replace engine oil as below
IMPORTANT! CHAIN ADJUSTMENT
Before First Ride
- Loosen rear axle & adjust chain tension. Find tightest point in chain by spinning rear wheel, there should 15mm up & 15mm down at the longest section of chain with rider sat on bike. Ensure chain runs true & is on top of chain roller if your models has one.
- You can ensure chain runs true by eye then by straightening the front wheels and measuring from wheel rim front to wheel rim rear and repeating on opposite side the measurements should be same both sides. If this measurement is out your axle needs aligning and your chain will come off as its not running true.
When aligning chains its important to loosen off the top and bottom axle bolts before attempting the chain adjusters otherwise you will thread the adjusters as it tries to pull a fixed solid axle. Chain adjusters must be adjusted evenly on both sides to keep the axle square otherwise you risk throwing your chain off and damaging your engine.
Chain tension must be done with the rider on the quad bike as each rider weight will change the chain tension needed.
Nut and Bolt Check
- Working from front to rear, ensure all nuts & bolts are tight. Where no nyloc nuts or spring washers are present, ensure thread-locking compound has been used. If none has been used during factory assembly, remove nut or bolt, apply locking compound & re-tighten. Pay particular attention to the following critical safety areas: Wheel nuts, brake calliper bolts (thread lock), Top & rear engine bolts (frame must be hard tight against the engine, use thread lock), chain tensioners, rear shock bolts, handlebar clamp bolts (yokes), Handlebars, brake/ clutch/throttle, swing-arm, front & rear sprocket, Exhaust Bracket Bolts,
- Check all engine hardware is tight, (including but not exclusive): flywheel, inlet manifold, exhaust bolts,
- Fully ensure nothing is touching the exhaust system including fuel lines are tied away.
- Ensure all cables and pipes & wiring are away from moving components such as the wheels, use cable ties where necessary
- Fuel bike & check for fuel leaks
Fill and Check oil level with quad bike in upright position using dipstick. Top up with Lucus Oil 10W 40 semi synthetic motorcycle oil, if necessary
- Adjust tension for both clutch & throttle cables
- Ensure wheels are tight & wheels run true
- Start engine & warm up (using choke if necessary). Set idle speed so engine ticks over comfortably without stalling or racing
(bearing in mind that the pads will need to bed in prior to optimum performance
1 HOUR SERVICE – EXTREAMLY IMPORTANT
- Remove Transport Oil & replace with Lucus Oil 10w 40 4-stroke engine oil
- Re-Adjust throttle cable & clutch cable if required
- Re-tension chain as this will stretch in the first hours of use. This will need continual monitoring.
- Check wheel bearings for any sign of wear of free-play
- Check Engine Idle Speed and adjust if necessary
- Check brake calliper operation & brake pad wear
- Check tyre pressures 4-6 psi
RIDING TIPS FOR LONG ENGINE LIFE – IMPORTANT
Every 4 hours use.
- Do not use the gears when the bike is in motion.
- Check all nuts & bolts & tighten where necessary as above PDI
- Re-Adjust throttle cable & clutch cable if required
- Re-tension chain as this will stretch in the first hours of use. This will need continual monitoring.
- Check wheel bearings for any sign of wear of free-play
- Check brake calliper operation & brake pad wear
- Check spark plug gap ~0.6mm-0.7mm
- Check tyre pressures 4-6 psi
PROBLEM SOLVING
- No spark – Either poor earth or faulty Rotor Coils/CDI/Coil/Lead/Cap/Plug – use moving coil mustimeter to diagnose
- Fuel leaks from overflow – Floats set incorrectly or blocked by debris or sticking
- Engine runs fine, but then starts to misfire – faulty rotor coils/CDI/Coil/Plu
- Engine will not tick over when warm – readjust the engine idle
- Engine will not return to idle & races – sticking throttle cable or idle incorrectly set on the carb.
STORAGE.
- It is advisable to fully service and lubricate the bike prior to leaving the bike unused/unattended for any length of time.
- It is advisable to fully drain the tank and carb of fuel prior to leaving the bike unused/unattended for any length of time.
BUILT QUAD BIKES
Where quad bikes have been pre-assembled you are still required to
- Nut and bolt check the quad bike before use.
- Check chain tension is suitable for the weight of the rider.
- Follow the 1 hour and 4 Hour service
49cc Mini Dirt Bikes and Mini Quad Bikes
98% of problems are caused by incorrect fuel mixture and incorrect 2 stroke oil used. Mix at 25:1 ratio or debris blockage of the fuel tap.
Use a quality semi synthetic motorcycle 2 stroke oil and not gardening 2 stoke oil as gardening 2 stroke is a completely different compound of oil and clogs the spark plugs up and causes them to be difficult to start
NEVER YANK THE PULL STARTER WITH FORCE – You will snap the pull cord and these are not a warranty item. Small short pulls are all you need as the pull start is spring assisted.
Unfortunately ” it was already frayed when it arrived” is an excuse we hear of everybody who snaps them. We build and start 100s of mini bikes a week and never snap pull starts.
They only snap in frustration normally because the oil mix is wrong and your relentlessly yanking at it.
